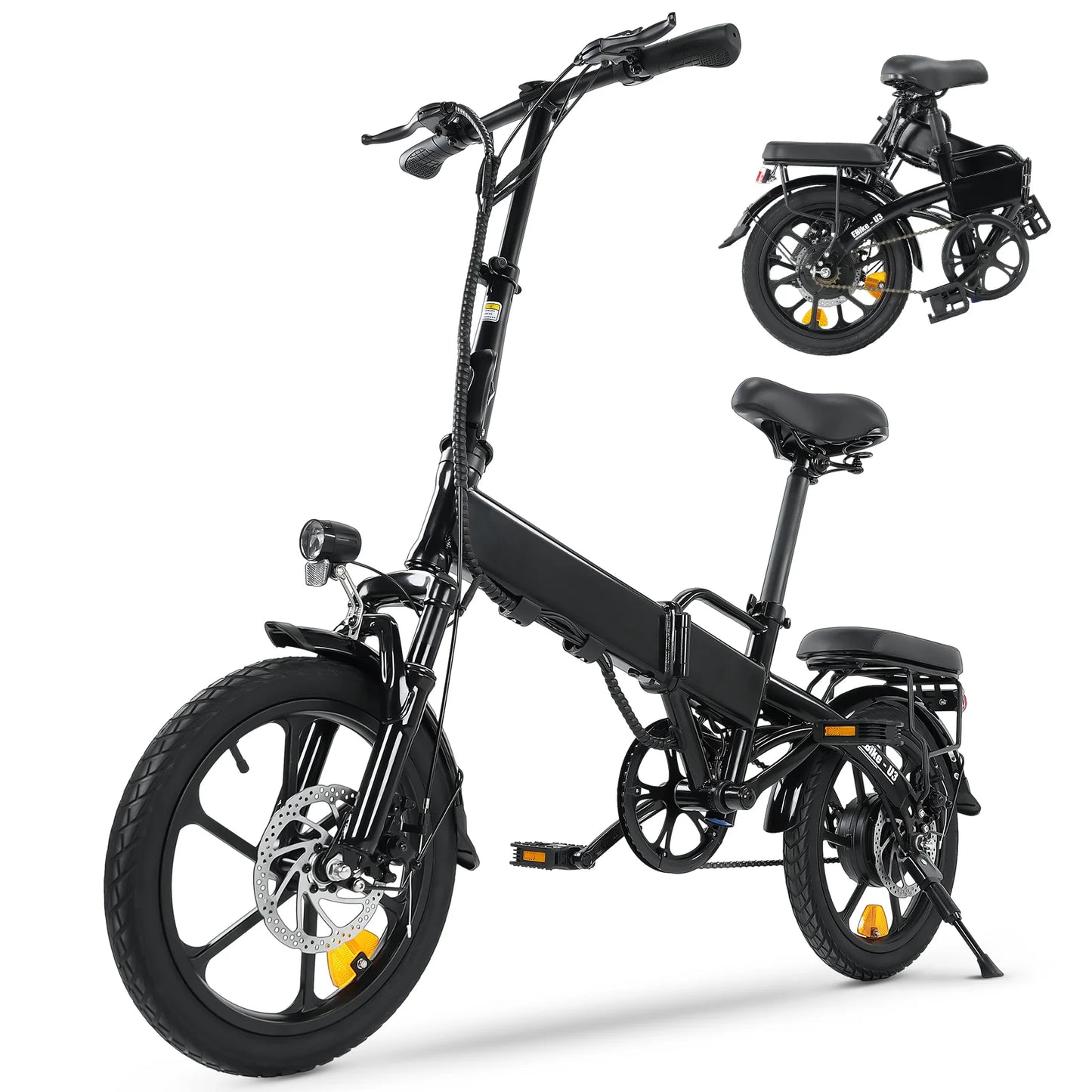

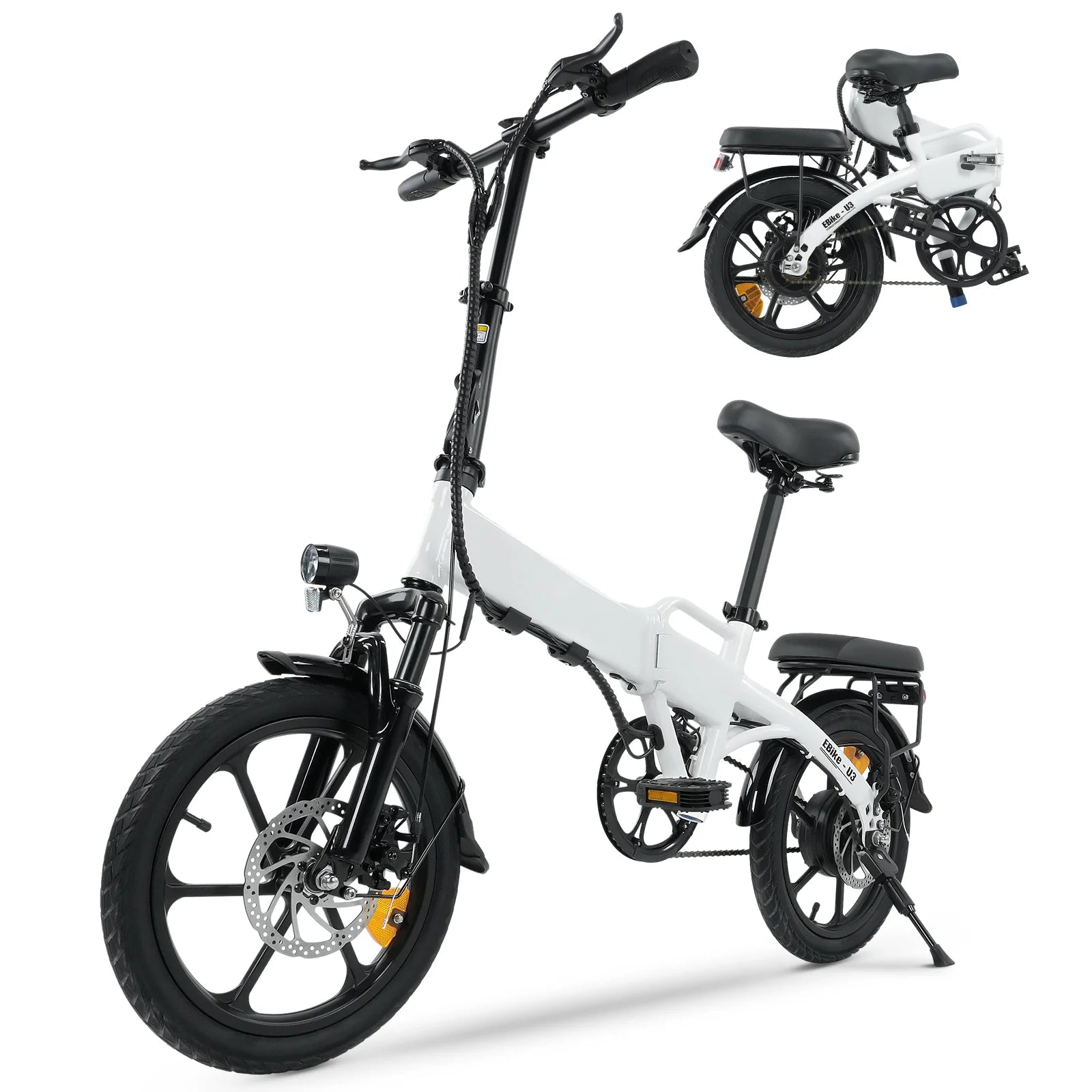

iSinwheel U3 Foldable Electric Bike

Description

The iSinwheel U3 is built for riders who want convenience, comfort, and power in a compact folding design. Featuring a 500W brushless motor, the U3 delivers smooth acceleration and a top speed of up to 18.6 mph, making it ideal for daily commutes, city travel, and weekend adventures. Its 36V 7.8Ah lithium battery provides a real-world range of 21–35 miles, with fast charging in just 2–3 hours, so you can get back on the road quickly.

Designed for comfort, the U3 features front suspension and a shock-absorbing saddle, helping to soften bumps and vibrations on uneven terrain. The 16×1.75" pneumatic tires offer reliable grip and smooth rolling, whether you’re riding bike lanes, park paths, or neighborhood roads.

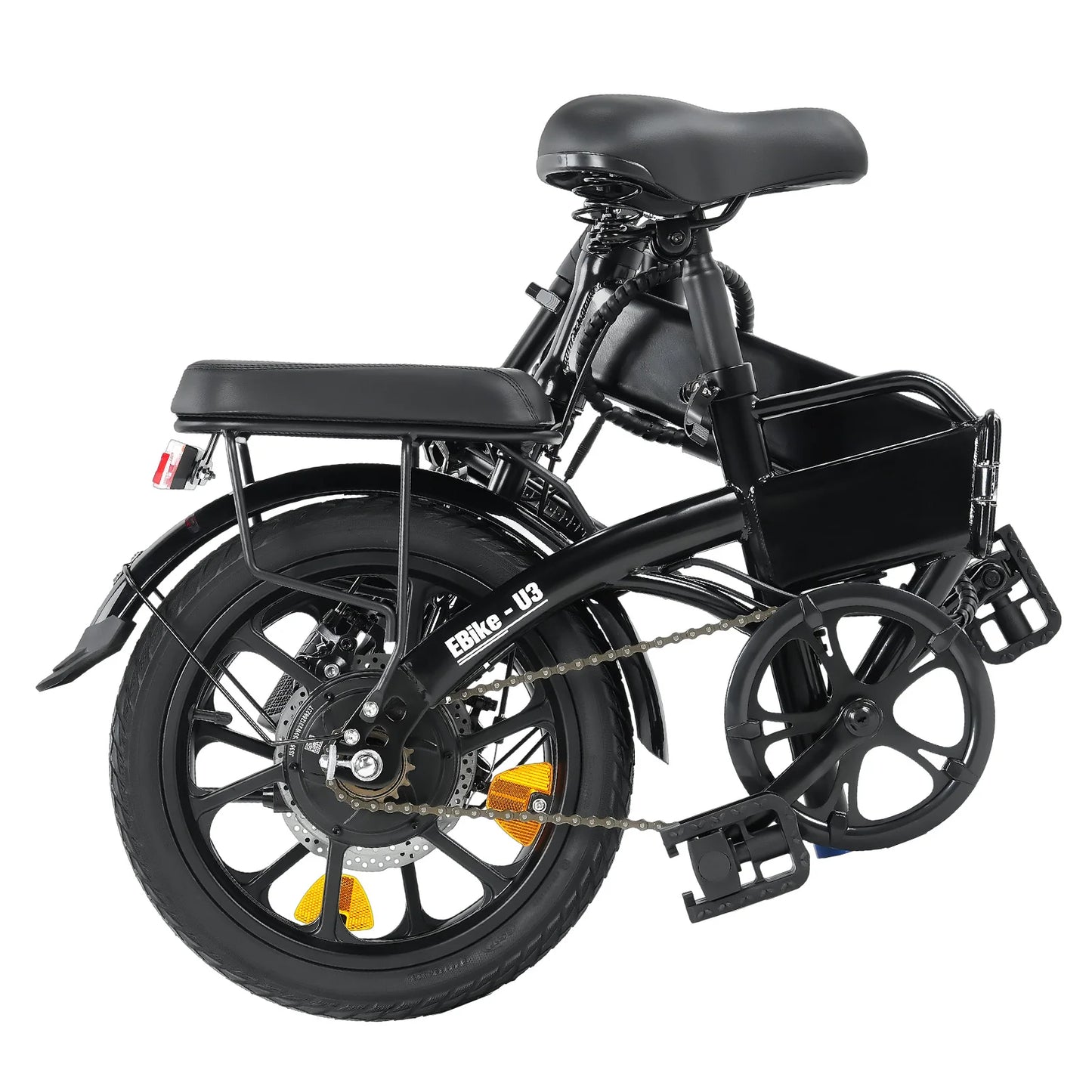

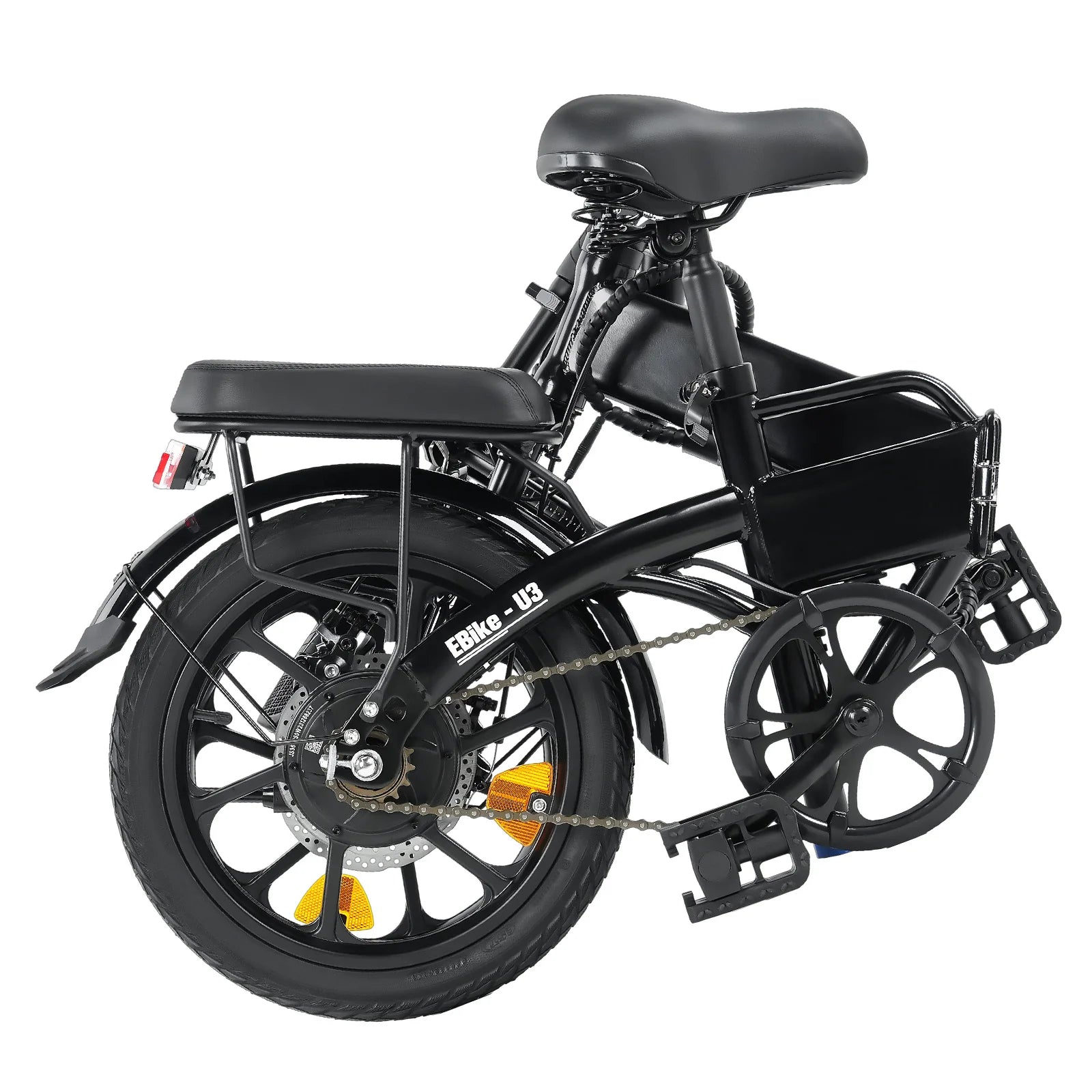

The foldable frame and integrated carrying handle make the U3 extremely portable. It fits easily into car trunks, closets, office spaces, and public transport — perfect for flexible commuters or compact living spaces. Adjust the handlebar height for a personalised riding position, and switch between three riding modes: pure electric, pedal assist, or manual pedaling.

Safety and control come built-in. The U3 uses front and rear disc brakes for steady stopping power, along with front and rear LED lighting for visibility day or night. An easy-to-read LCD display keeps speed, battery level, and mode at your fingertips.

Whether you're riding to work, running errands, or exploring new paths, the U3 delivers a smooth, confident, and convenient riding experience — all in a lightweight, go-anywhere design.

Technical Specification

Specification:

Performance

• Motor: 250W rated (500W peak)

• Top Speed (Throttle Modes): 10 / 15 / 25 / 30 km/h

• Range:

  • 21–35 miles (35–55 km), depending on mode & conditions

• Controller: 36V, max 15A output

• Pedal Assist: Yes (multi-level assist)

• Rider Height Recommendation: 5'1" to 6'1" (155–180 cm)

• Total Load Capacity: 264 lbs (120 kg)

• Warranty: 2 years (all parts)

Battery & Charging

• Battery Capacity: 36V 7.8Ah lithium battery (281Wh)

• Waterproof Rating: IP65 (battery protection included)

• Charging Time: 2–3 hours

• Charger: 42V 3A Smart Charger (100V–240V AC input)

• Estimated Battery Life: ~800 charge cycles

Brakes & Safety

• Braking System: Front + rear hydraulic 160mm disc brakes

• Lighting System:

  • 111-lumen front LED headlight

  • Rear LED taillight

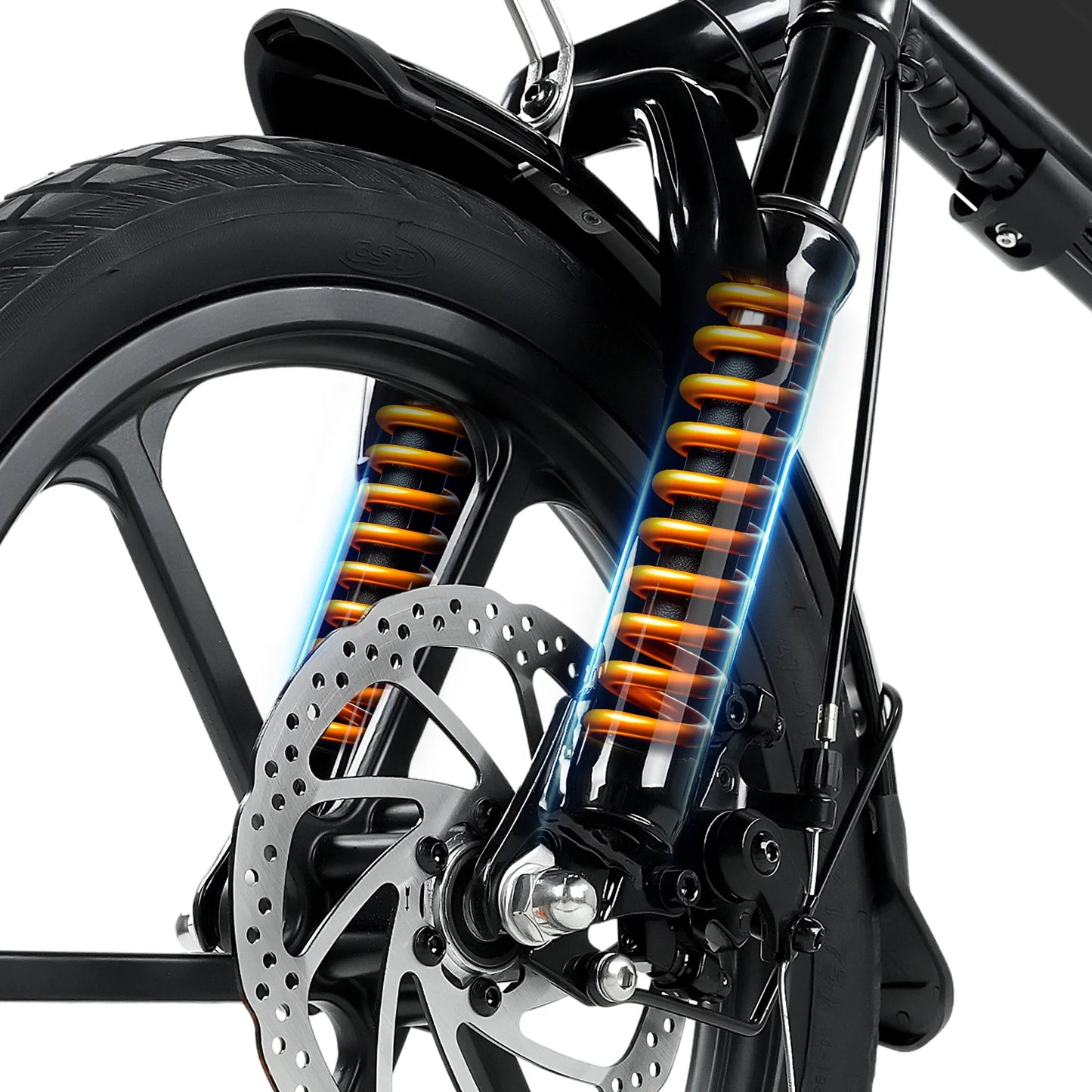

• Suspension: Adjustable front suspension fork for shock absorption

Frame & Build

• Frame Material: Alloy steel folding frame

• Foldable: Yes (compact portable design)

• Net Weight: 51.4 lbs (23.3 kg)

Tires & Comfort

• Tire Size: 16 × 1.75" pneumatic tires

• Seat: Breathable ergonomic cushioned saddle

• Seat Post: Adjustable height for rider fit

Display & Controls

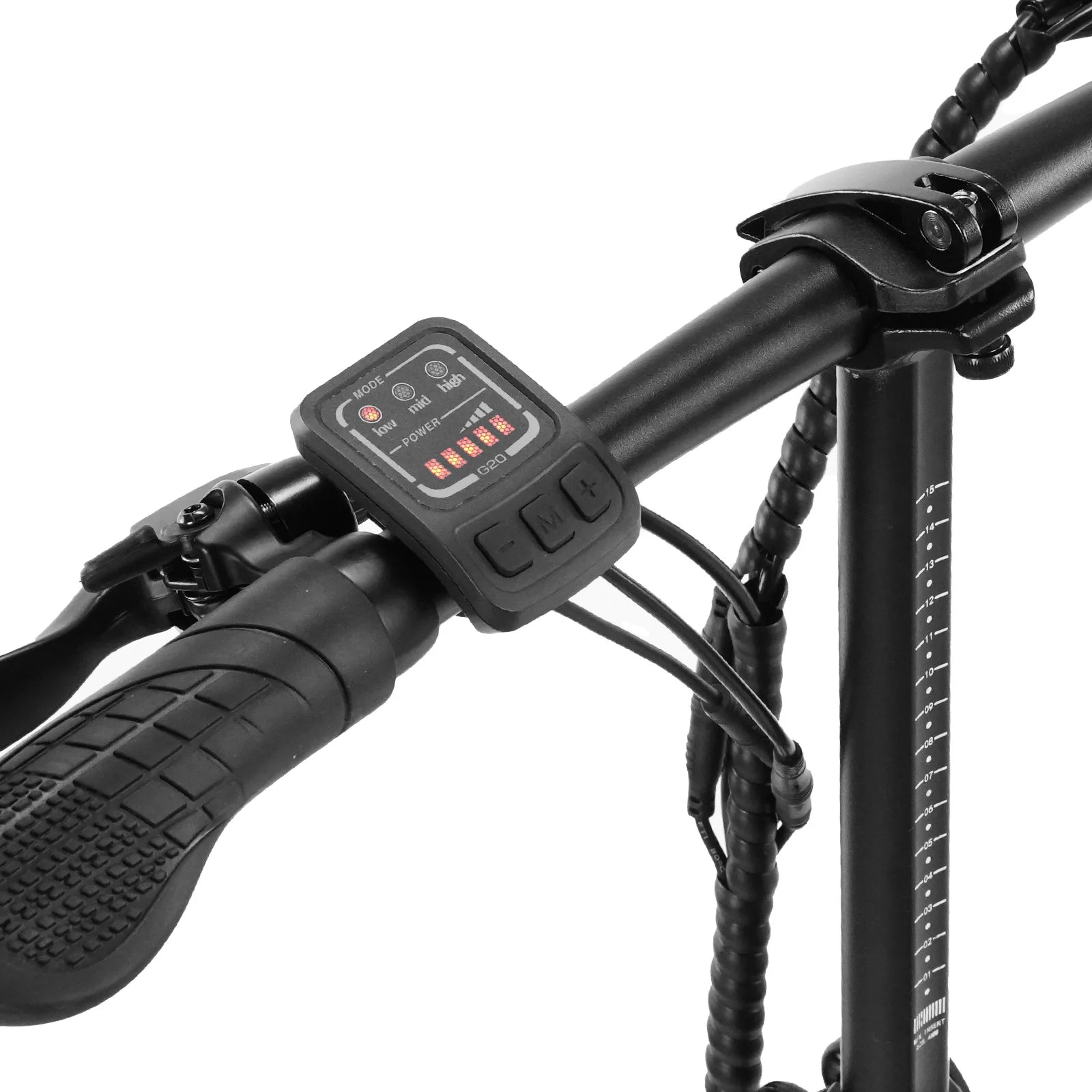

• Display: 6.5 × 4.7 cm LCD screen (speed, battery, assist mode, trip info)

• Throttle: Handlebar-mounted speed control

Dimensions

• Bike Dimensions: 142 × 56 × 94 cm (55.9 × 22 × 37 in)

• Packing Size: 83 × 36 × 63 cm (32.7 × 14.2 × 24.8 in)

• Wheelbase: 37.4"

• Standover Height: 20"

• Seat Height Range:

  • Minimum: 27.6"

  • Maximum: 37.8"

• Handlebar Height Range: 37" to 43.7"

• Handlebar Width: 22"
