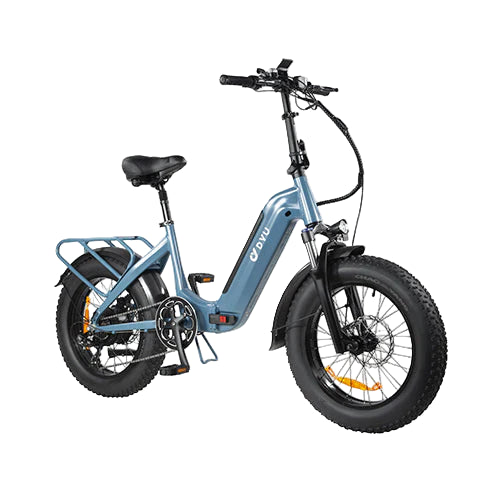

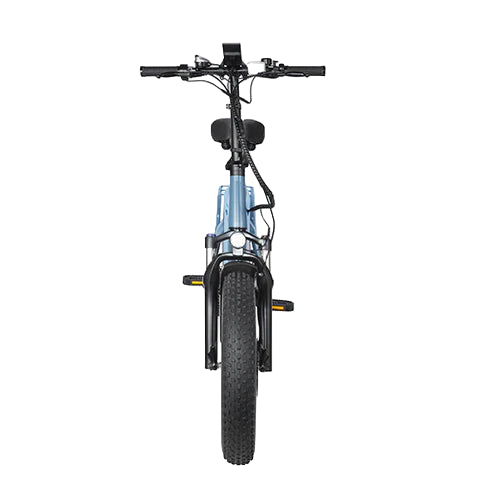

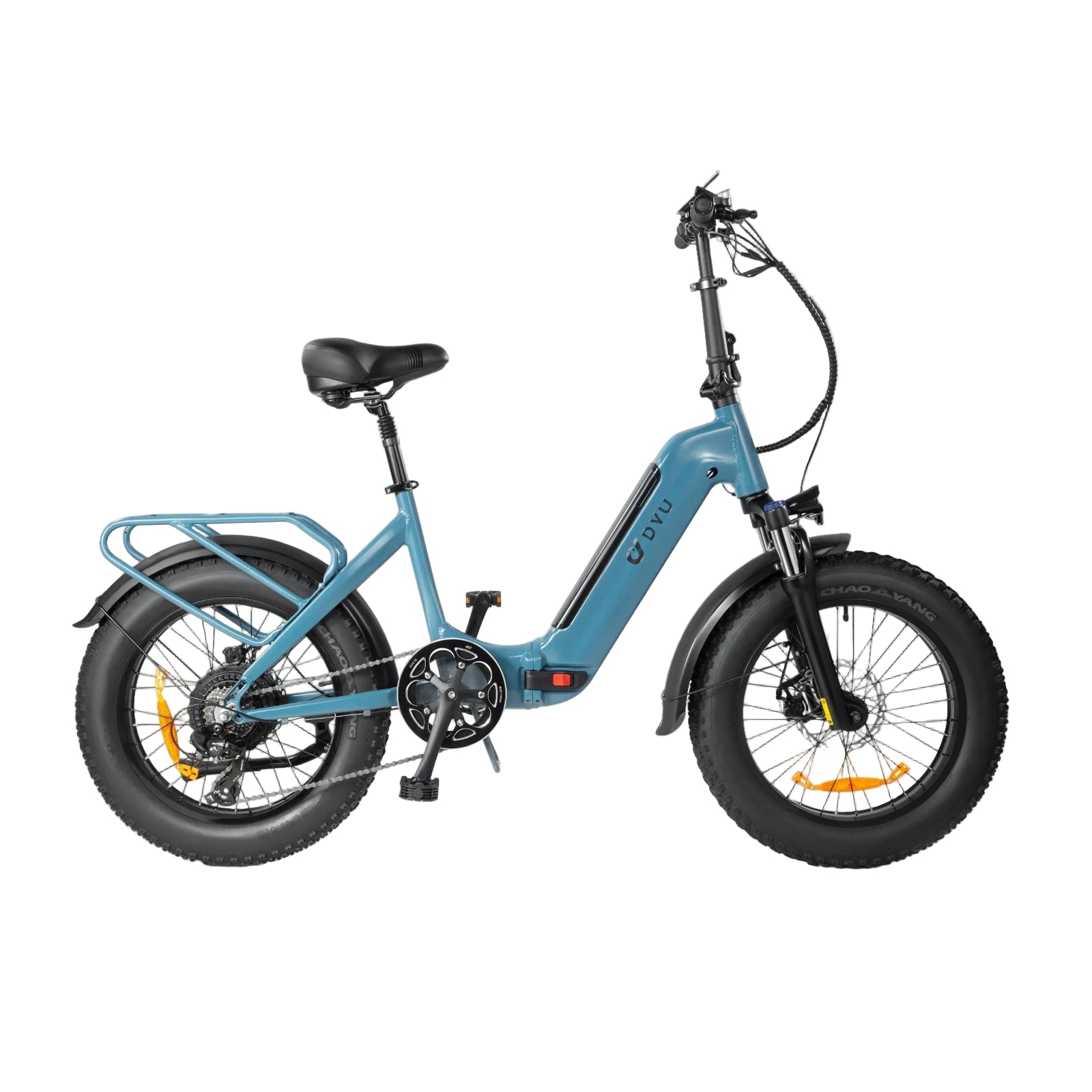

DYU FF500 20 Inch Fat Tire Electric Bike

Description

Description:

Discover the perfect balance of power, comfort, and versatility with the DYU FF500 Foldable Electric Bike. Designed for riders who want a reliable, high-performance e-bike that can handle both urban streets and more challenging terrain, the FF500 combines a robust motor, long-lasting battery, and ergonomic design to make every ride enjoyable.

Equipped with a 250W high-speed motor and a 48V 14Ah LG lithium-ion battery, the FF500 delivers smooth acceleration and a maximum range of up to 70KM per charge. The battery’s integrated Battery Management System (BMS) ensures optimal energy use, giving you confidence that power will last when you need it most. With three riding speeds, you can easily adjust your pace to match city traffic, weekend adventures, or leisurely cruising.

Comfort is at the heart of the FF500’s design. A dual shock absorption system — including an inflatable cushion seat, front fork suspension, and fat tires — minimizes bumps and vibrations, offering a smooth ride even on rough surfaces. The ergonomic seat and handlebar design further reduce fatigue, allowing you to enjoy longer rides in complete comfort.

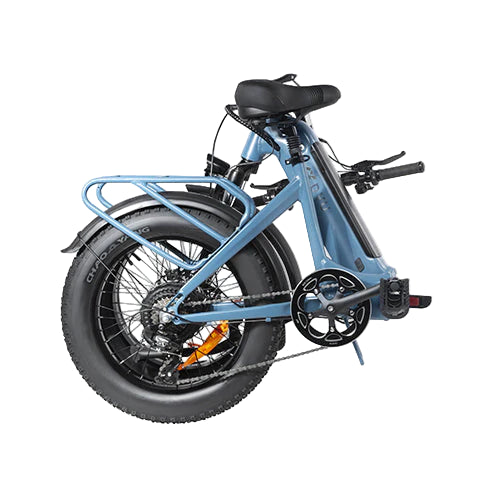

The FF500 is built for convenience as well as performance. Its foldable frame and detachable battery make it easy to store at home, in your car trunk, or carry on public transport. A rear rack adds extra utility for carrying groceries, backpacks, or daily essentials, while front and rear disc brakes ensure reliable stopping power for safe riding.

Additional features like Shimano 7-speed gearing and a large LED display provide precise control and clear real-time information, making every journey smooth and stress-free. Its fat tires not only enhance stability and grip but also contribute to a fun, confident riding experience on various terrains.

Whether commuting to work, running errands, or exploring new trails, the DYU FF500 Foldable Electric Bike combines power, comfort, and versatility in one compact, stylish package. With its foldable design, long-range battery, and shock-absorbing features, it’s the perfect companion for urban commuting and outdoor adventures alike.

Technical Specification

Specification:

Size & Weight

• Frame Material: Aluminum Alloy

• Spread Size: 1760 × 585 × 1270 mm

• Package Size: 1515 × 310 × 720 mm

• Folded Size: 950 × 500 × 800 mm

• Wheel Hub Size: 20 inches

• Pedal Ground Clearance: 120 mm

• Frame Color: Blue

• Net Weight: 31 kg (68 lb)

• Recommended Rider Height: 5.24–6.39 ft (160–195 cm)

• Max Load Capacity: 150 kg (330.7 lb)

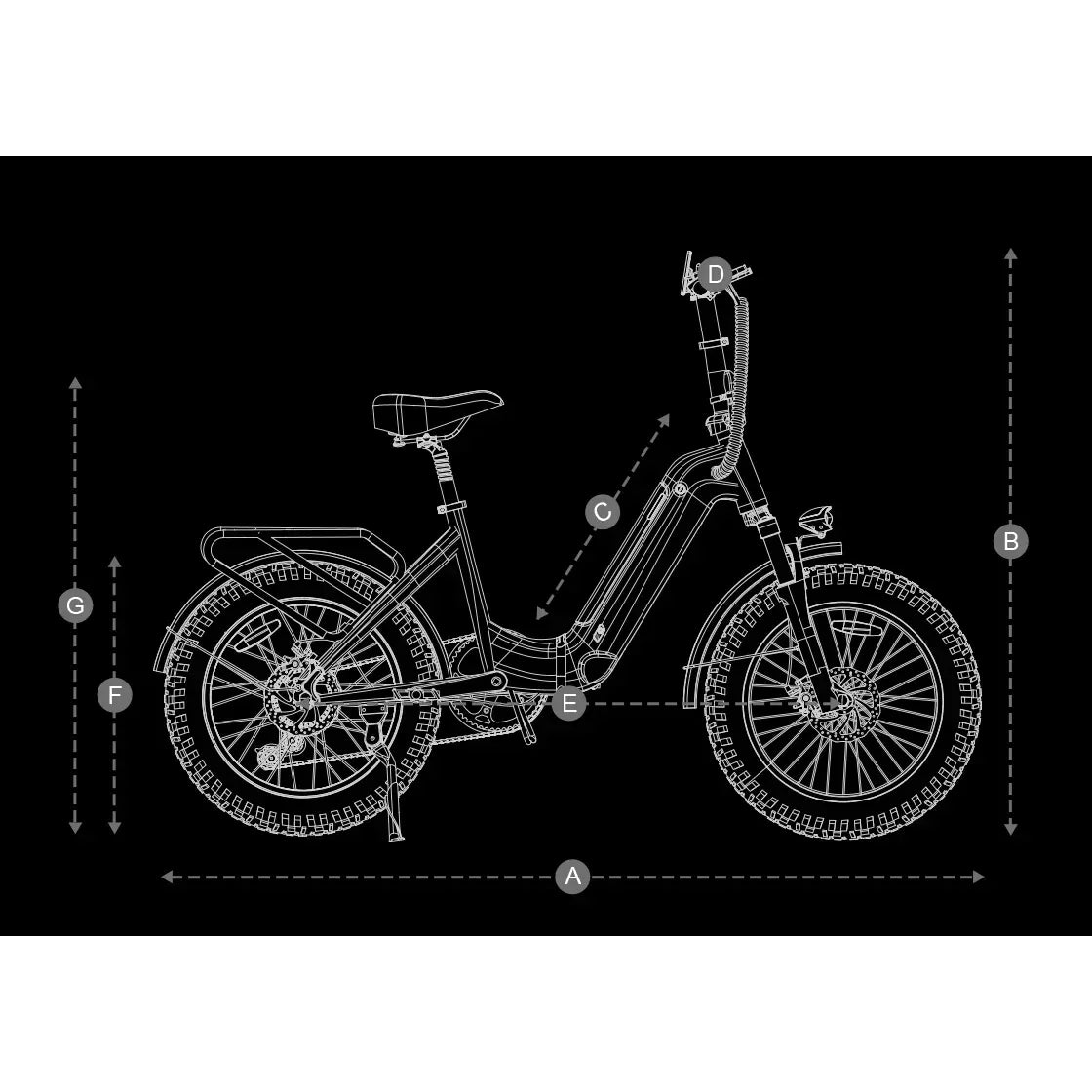

• A. 69.3inch - 176cm
• B. 50inch - 127cm
• C. 23.6inch - 60cm
• D. 6.5inch - 16.5cm
• E. 23.8inch - 60.5cm
• F. 35inch - 89cm
• G. 41inch - 104cm

Performance

• Motor Type: High-speed motor

• Motor Rated Power: 250W

• Motor Rated Voltage: 48V

• Motor Rated Speed: 340 r/min

• Controller Under-Voltage Value: 41 ± 1V

• Battery Type: 18650 Lithium-ion

• Battery Capacity: 14Ah

• Battery Rated Voltage: DC48V

• Battery Fuse: Yes

• Charging Voltage: DC54.6V

• Charger Input Voltage: AC 100–220V

• Charging Time: 7–8 hours

• Max Speed: 32 km/h (20 mph)

• Average Speed: 25 km/h (15.5 mph)

• Range (Pedal Assist Mode): Up to 70 km

• Range (Pure Electric Mode): Yes, up to 70 km

• Uphill Grade: 15°

• Power Consumption per 100 km: 1.08 kWh

Features & Safety

• Assist Mode: Yes

• Throttle / Pure Electric Mode: Yes

• Brake Mode: Front and rear disc brakes

• Shock Absorption: Front fork & seat tube

• Front Light: Yes

• Waterproof Level: IP54

• Seat Height: Adjustable

• Sensor: Speed sensor

• Personalized Sticker: Supported

• Operating Temperature: -10 to 45 ℃
