REVR

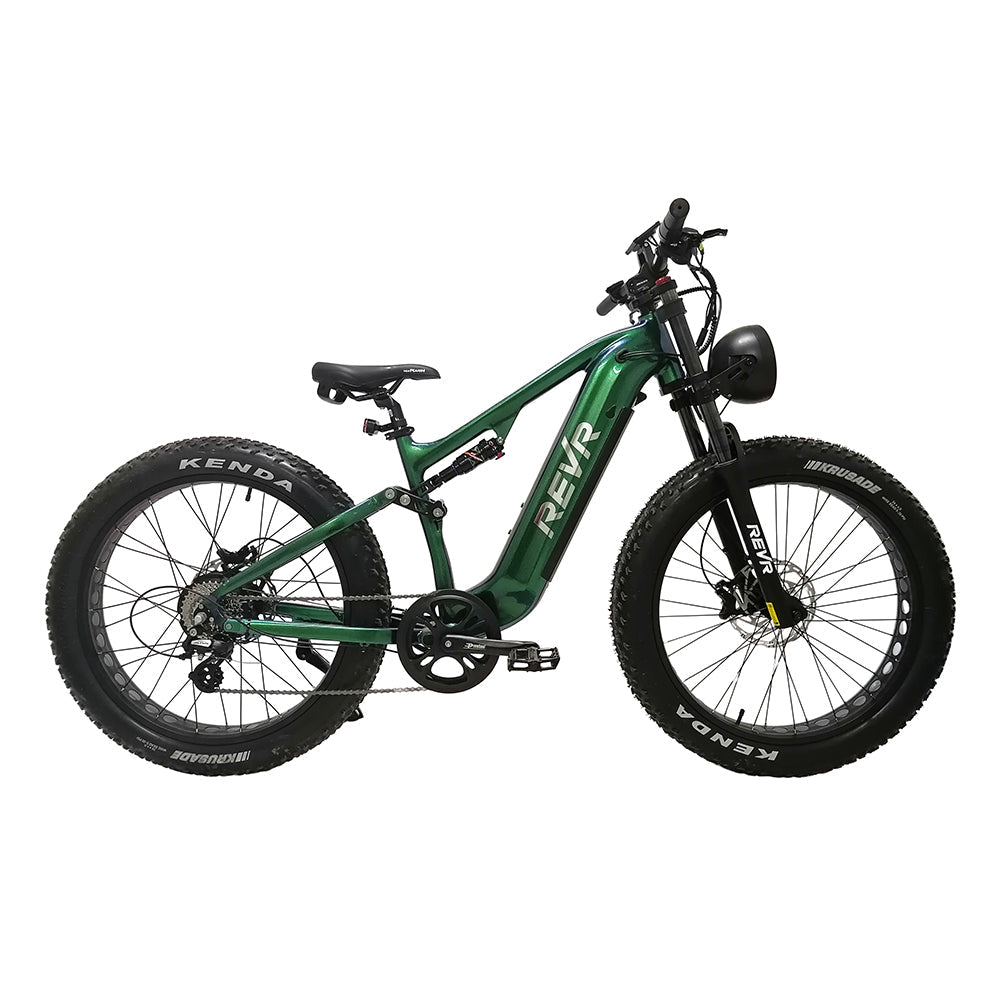

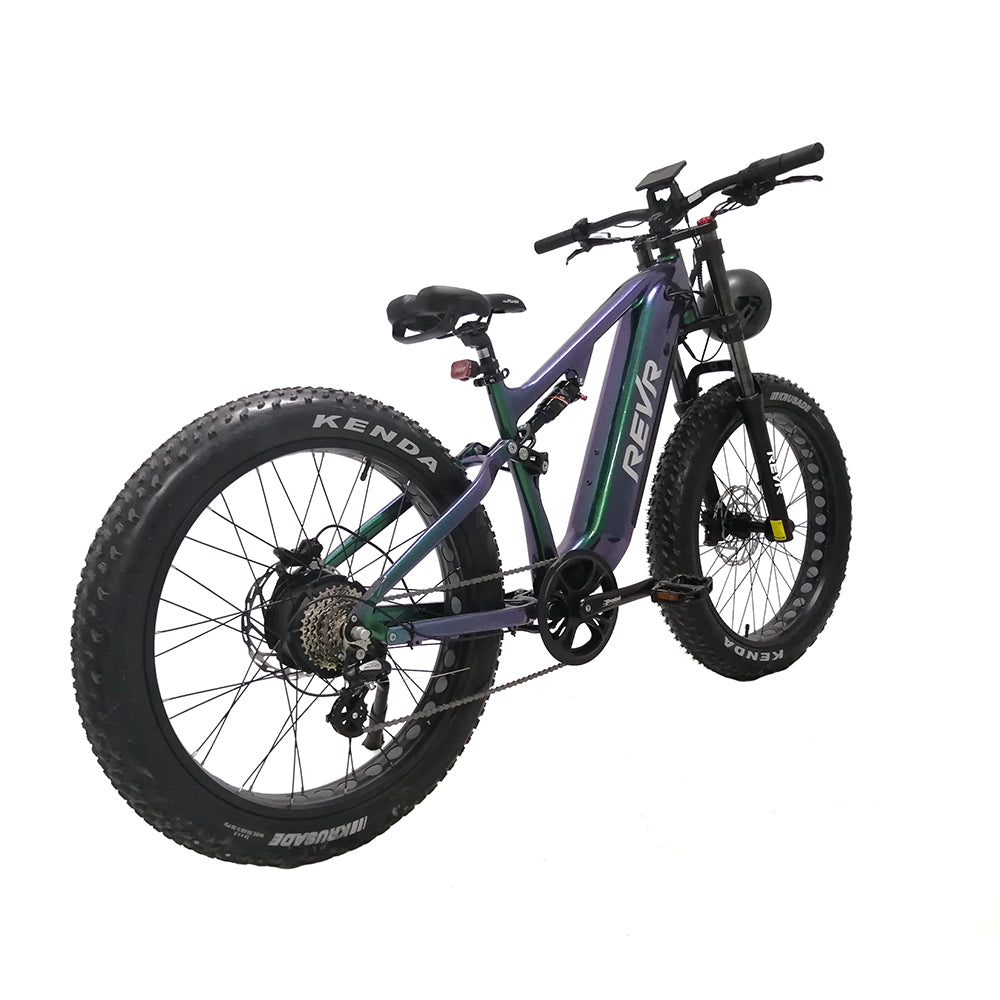

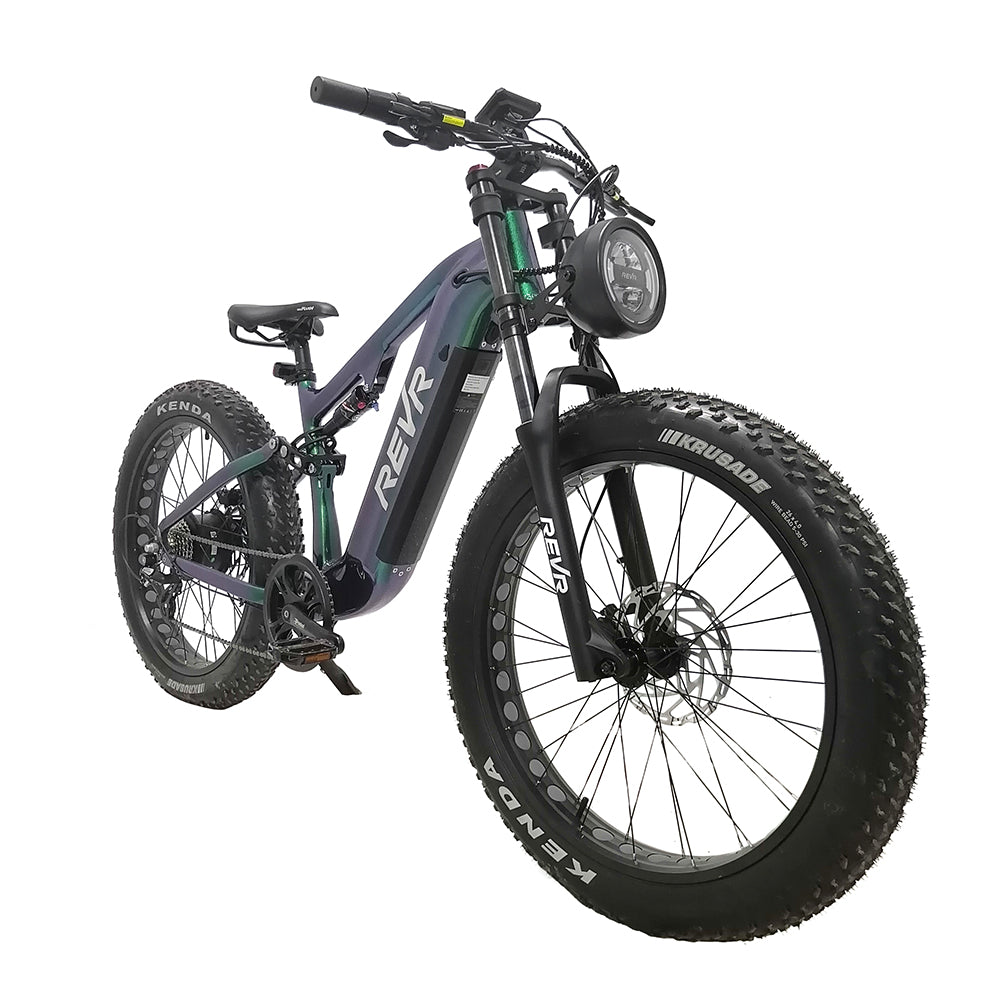

REVR City Electric Bike TA9
REVR City Electric Bike TA9
Couldn't load pickup availability
About This Item:
- REVR City Electric Bike TA9 is equipped with a 750W brushless motor and a 48V 20AH battery. The maximum range is 60-80 miles, and the maximum speed can reach 28 mph under assisted acceleration.
- The 6061 sturdy aluminium alloy frame has higher durability and corrosion resistance.
- The front suspension system can smooth out rough terrain, and the centre shock absorber system can eliminate vibration and absorb most of the bumps during driving.

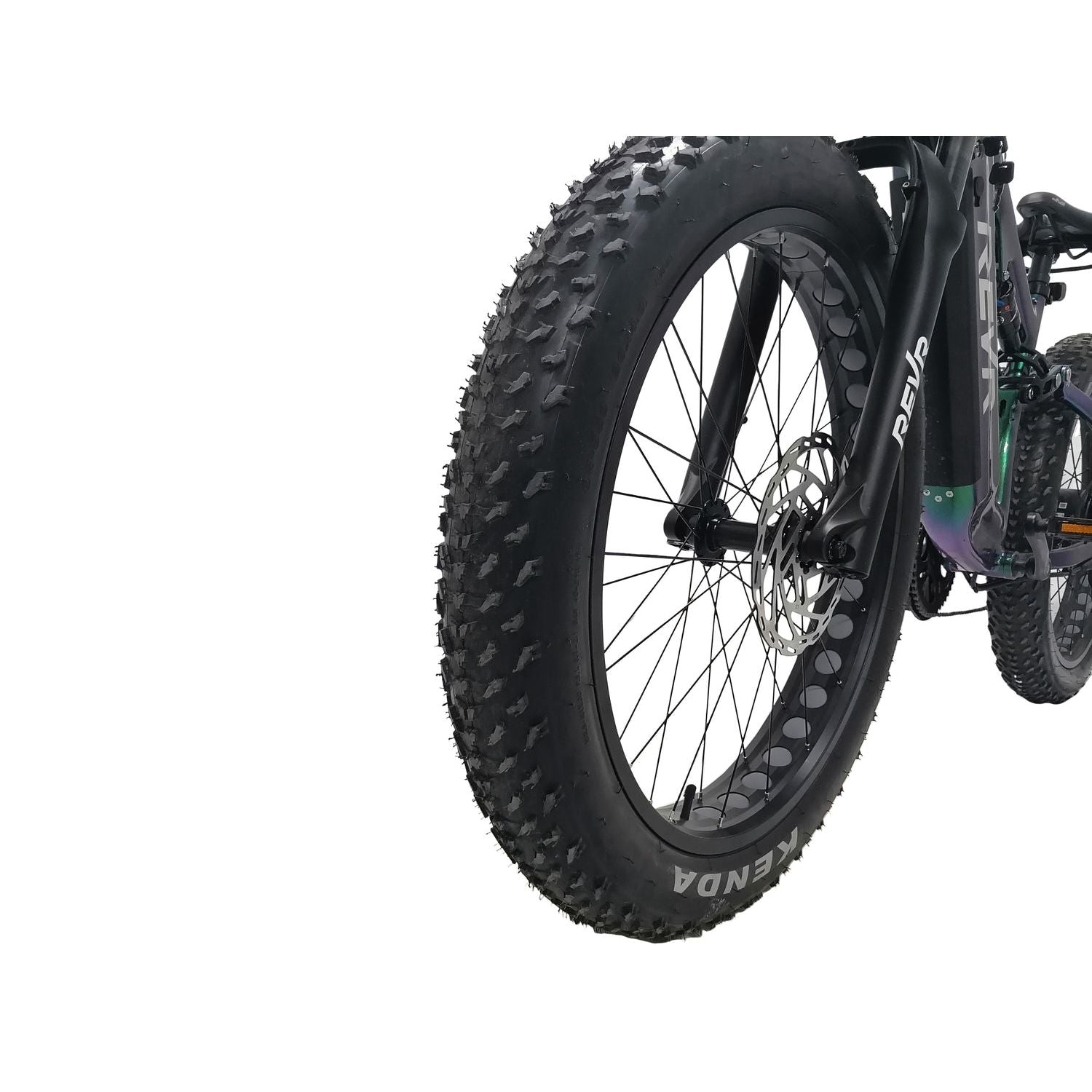

- Kenda 26”*4.0” puncture-proof fat tires provide unparalleled stability and grip.
- LED super bright large headlights can illuminate the road ahead and ensure a safe journey.

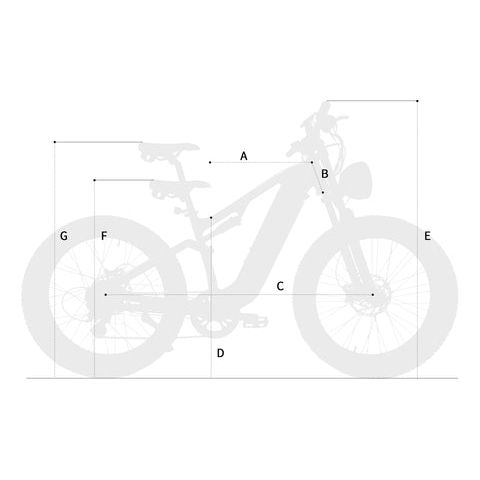

Size & Fit:
| Frame Size | Reference Data | |
| Rider Height | / | 5'2"-6'2" |
| Reach | A | 23.6" |
| Head Tube Length | B | 4.3" |
| Wheelbase | C | 48.1" |
| Standover Height | D | 15.7" |
| Handlebar Height | E | 43.3" |
| Min Saddle Height | F | 34.6" |
| Max Saddle Height | G | 41.3" |
Technical:
| Battery | 960Wh 48V 20AH |
| Charger | 48V 3A (US Standard Smart Charger) |
| Charging Time | 6~7 Hours |
| Speed Class | Throttle speed of 20 mph and assistance can reach up to 28 mph |
| Weight | 81.4 lbs |
| Range | 60~80miles |
| Peak Motor | 750W |
| Payload Capacity | 264 lbs |
Performance:
| Tires | Kenda 26"*4.0" Fat tires |

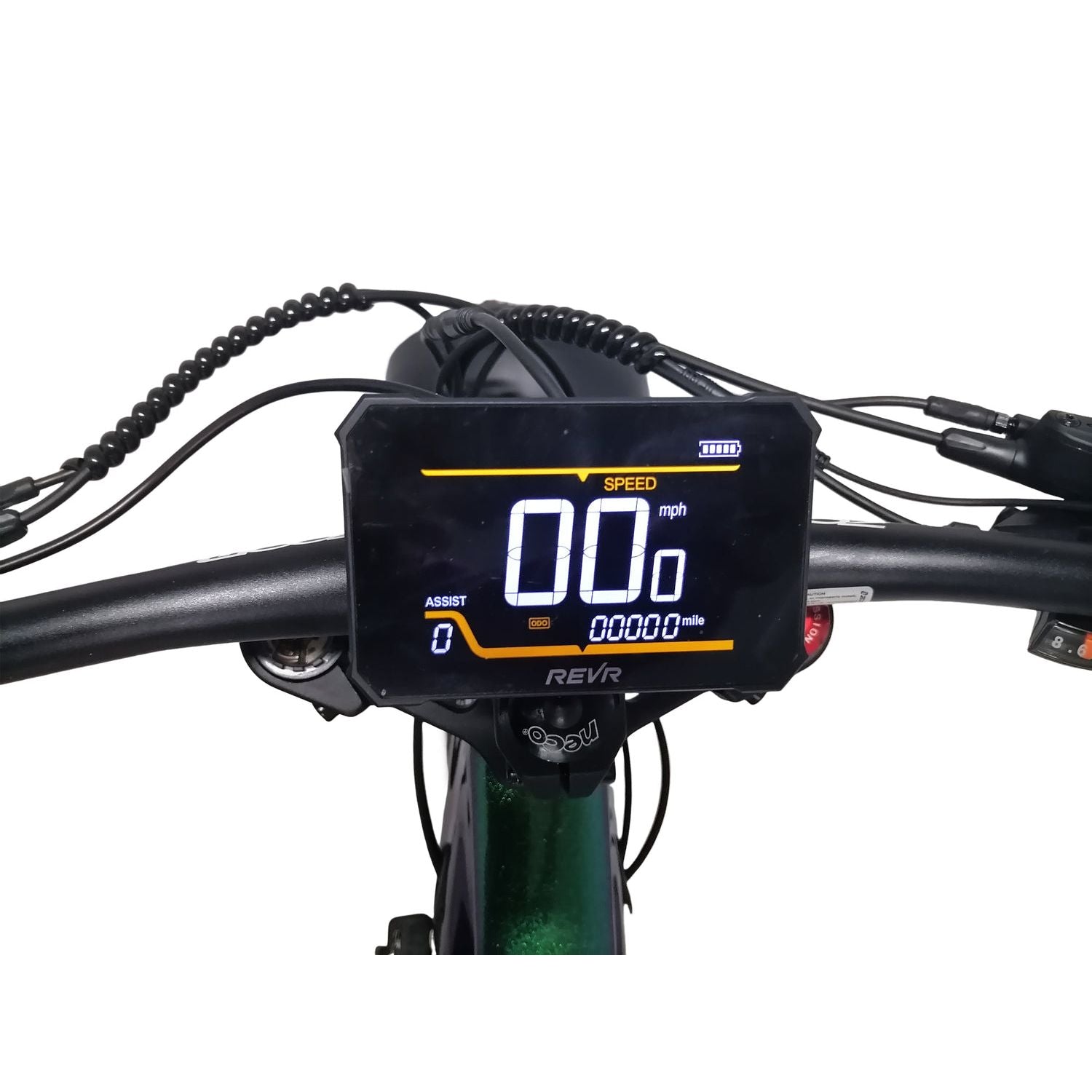

| Display | LCD Color |
| Brakes | Hydraulic Disc Brakes |
| Chain | KMC Corrosion-Resistant Chain |
| Crank Set | Black aluminium crank |
| Derailleur | 8-speed Shimano |
| Front Fork | Aluminium Suspension Fork |
| Frame | 6061 Aluminium Alloy |
| Gearing | 1-8 Speed |
| Throttle | Thumb Throttle |
| Handlebar | Customized Aluminum Alloy |
| Rims | Aluminum Alloy |
| Saddle | Comfortable shock-absorbing seat cushion |
| Sensor | 48V Pedal Assist Sensor |
| Spokes | 12 Gauge Front and 12 Gauge Rear |
| Pedal | All-aluminium shell with beads |
| Lights | Headlight & RearLight |
| Water Resistance | IP65 |
| Operating Temperature | -4°F~140°F (-20°C ~60°C) |
