REVR
REVR City Electric Bike CM5
REVR City Electric Bike CM5
Couldn't load pickup availability
About This Item:
- REVR City Electric Bike CM5 is equipped with a high-performance 500W brushless motor, with a maximum speed of 20mph and a maximum mileage range of 50-60 miles.
- 6061 sturdy aluminium alloy frame has higher durability and corrosion resistance.
- LCD high-definition liquid crystal display screen displays various data, providing clear and powerful data support.
- The front suspension shock-absorbing front fork can absorb most of the bumps during driving.
- The sturdy rear rack can safely carry children and pets.

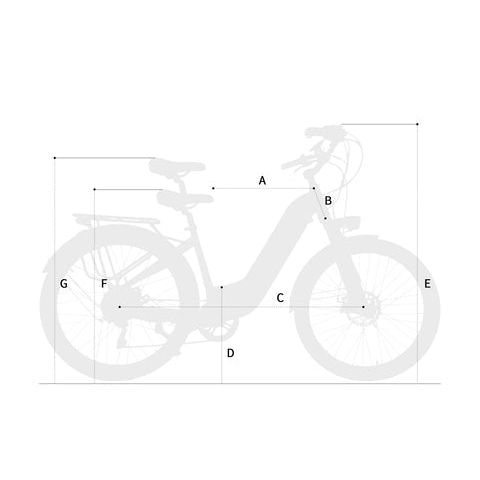

Size & Fit:
| Frame Size | Reference Data | |
| Rider Height | / | 5'2"-6'2" |
| Reach | A | 25.2" |
| Head Tube Length | B | 5.9" |
| Wheelbase | C | 46.5" |
| Standover Height | D | 17.7" |
| Handlebar Height | E | 43.3" |
| Min Saddle Height | F | 33.5" |
| Max Saddle Height | G | 41.3" |
Technical:
| Battery | 864Wh 48V 18AH |
| Charger | 54.6V 2A (US Standard Smart Charger) |
| Charging Time | 9 Hours |
| Speed Class | 20 mph |
| Weight | 68.2 Ibs |
| Range | 50~60miles |
| Peak Motor | 500W |
| Payload Capacity | 264.5 Ibs |
Performance:
| Tires | Kenda 27.5"*2.1" |
| Display | LCD Color |
| Brakes | Wire Pull Disc Brake |
| Chain | KMC Corrosion-Resistant Chain |
| Crank Set | Black aluminium crank |
| Derailleur | 7-speed Shimano |
| Front Fork | Aluminium Suspension Fork |
| Frame | 6061 Aluminium Alloy |
| Gearing | 1-7 Speed |
| Throttle | Thumb Throttle |
| Handlebar | Customised Aluminium Alloy |
| Rims | Aluminum Alloy |
| Saddle | Comfortable shock-absorbing seat cushion |
| Sensor | 48V Pedal Assist Sensor |
| Spokes | 12 Gauge Front and 12 Gauge Rear |
| Pedal | All-aluminium shell with beads |
| Lights | Headlight & RearLight |
| Water Resistance | IP65 |
| Operating Temperature | -4°F~140°F (-20°C ~60°C) |
