Magnum
Magnum Mountain Peak T7 E-Bike
Magnum Mountain Peak T7 E-Bike
Couldn't load pickup availability
Electronic Details:
• Motor Brand: Bafang
• Motor Type: Rear Hub-Drive
• Motor Nominal Output: 750 Watts
• Motor Peak Output: 1000 Watts
• Battery Voltage: 48V
• Battery Capacity: 20Ah
• Battery Energy: 960Wh
• Battery Chemistry: Li-NMC (Lithium Nickel Manganese Cobalt)
• Battery Charge Time (from empty): 10 Hours
• Minimum Range: 35 miles (56 kilometers)
• Maximum Range: 65 miles (105 kilometers)

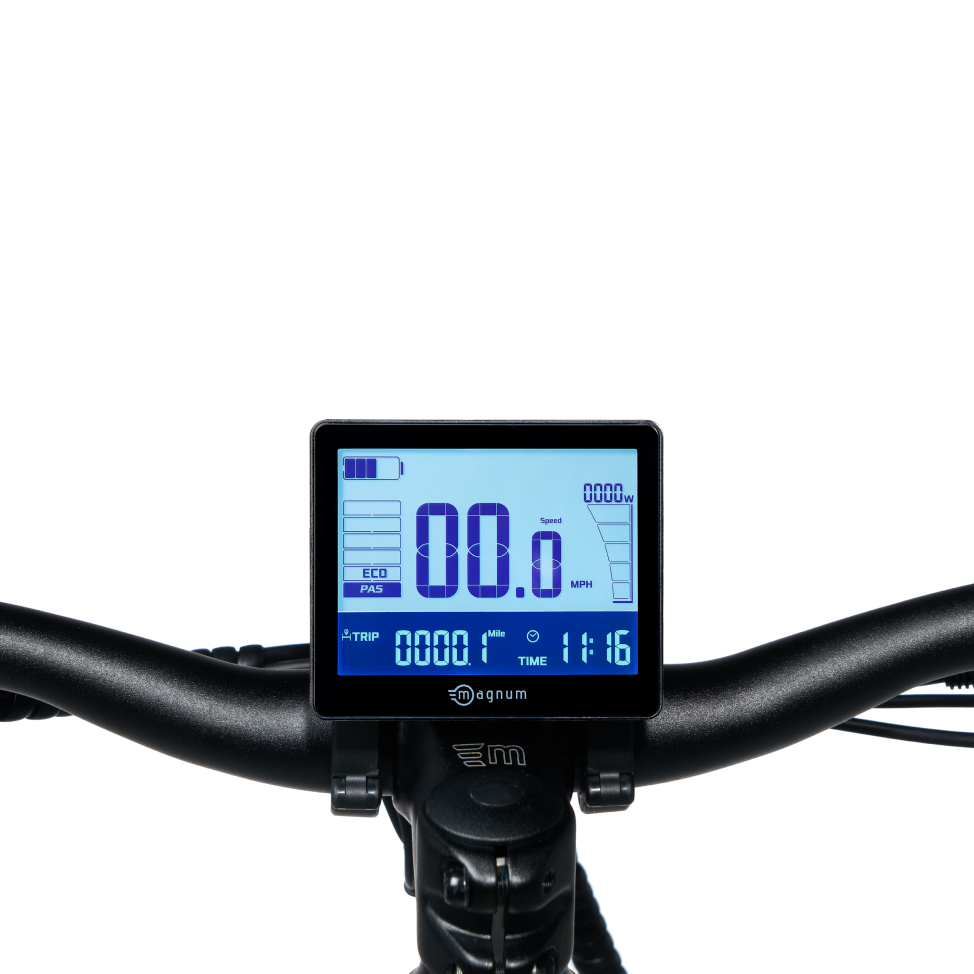

• Display Type: Magnum Branded VeloFox, 8 x 7 cm, Backlit Monochrome LCD
• Display Readouts: Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
• Drive Modes: Torque Sensor Pedal Assist, Thumb Throttle, Walk Mode
• Top Speed: Up to 28 mph with Pedal Assist, 20 mph with Throttle
• Front Light: 40 lux, controlled from display
• Rear Light: 20 lux, brake-activated (Rear light not included)
Mechanical Details:
• Frame Material: Aluminum Alloy
• Frame Type: (Not specified)
• Fork Details: XCM34-Boost

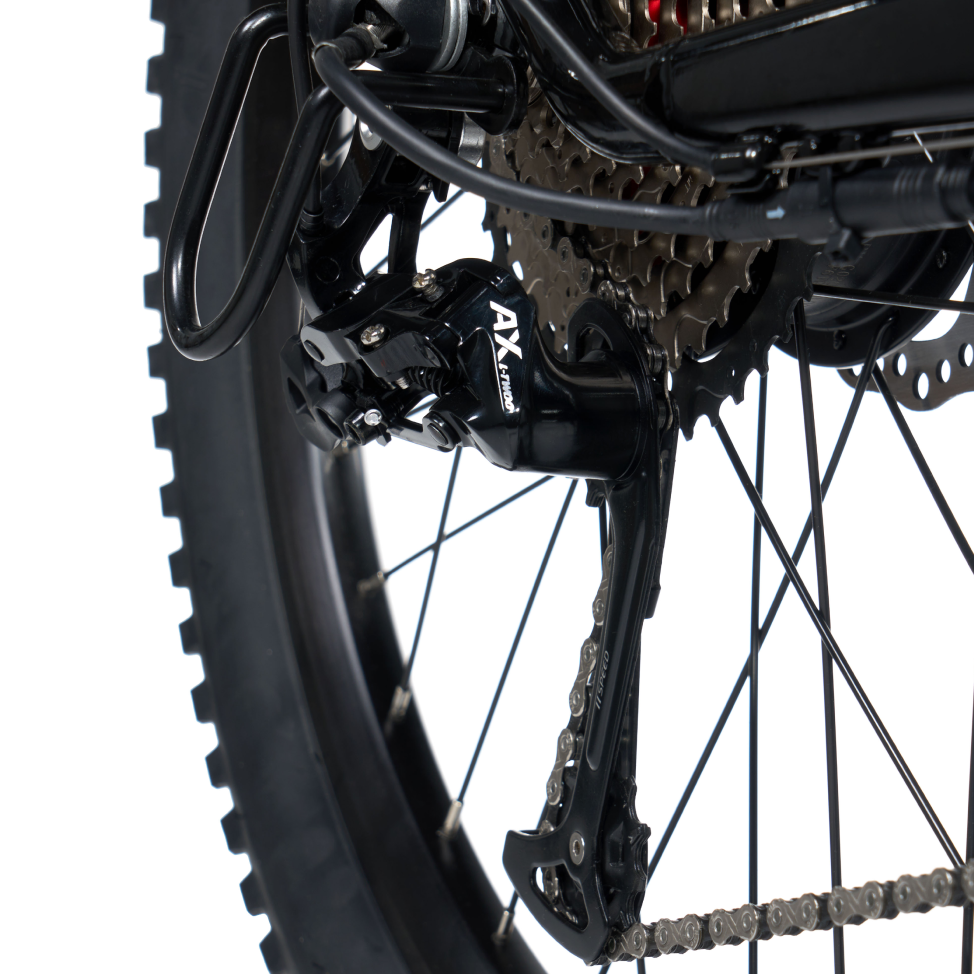

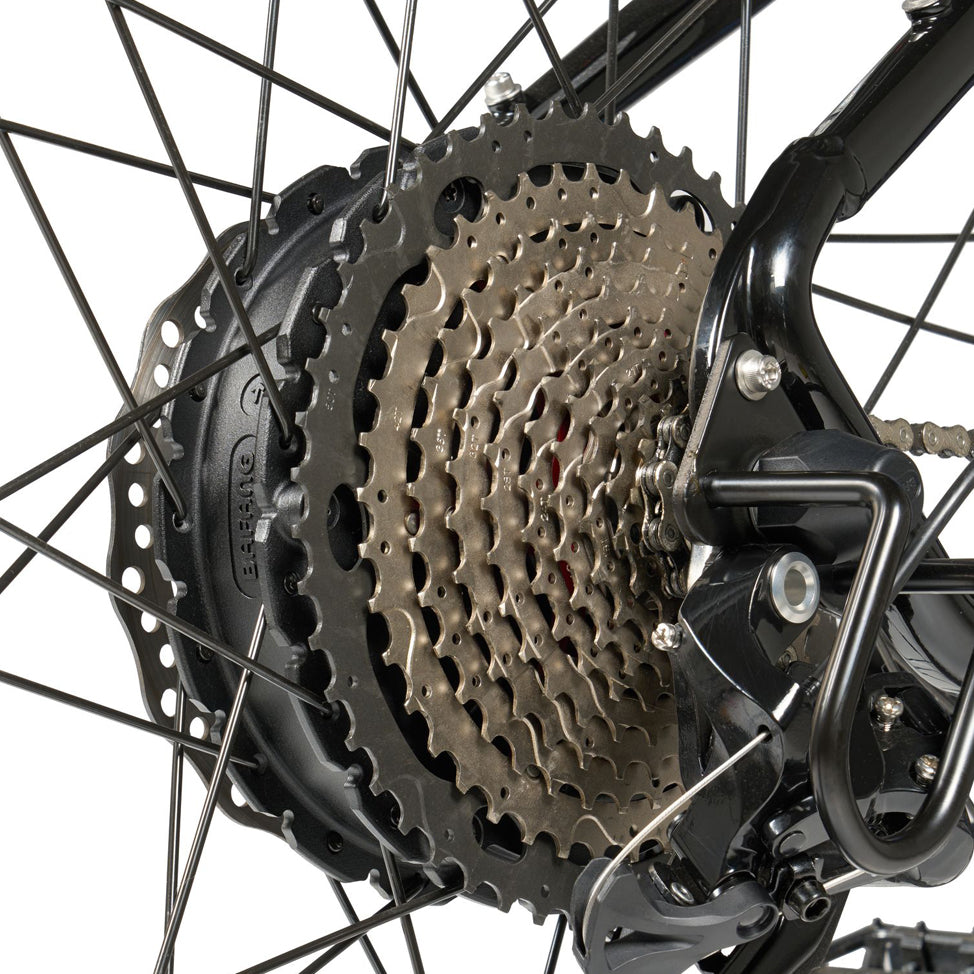

• Gearing: A11-X 11-Speed
• Shifter: A11-X 11-Speed
• Crank: Aluminum Alloy, 42T, 170mm
• Pedals: Wellgo
•Stem: Magnum 60mm
• Brakes: Logan Hydraulic Disc Brakes
• Grips: Black
• Saddle: Selle Royal Essenza+
• Tire Brand & Size: CST Patrol 27.5 x 2.8
• Wheel Size: 27.5”
• Fenders: Front and Rear Included
• Chain: KMC 11-Speed

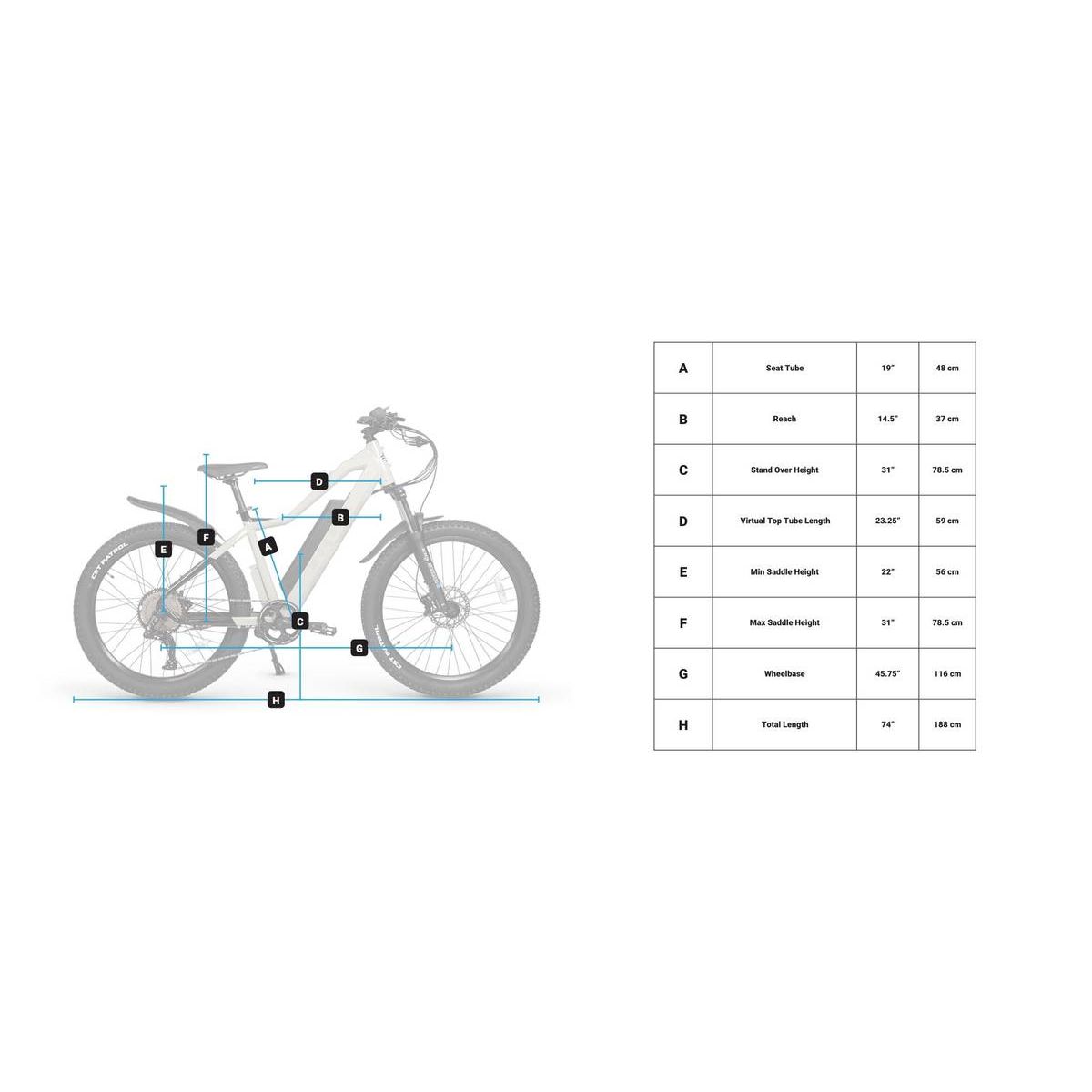

Measurements:
• Seat Tube: 19” (48 cm)
• Reach: 14.5” (37 cm)
• Stand Over Height: 31” (78.5 cm)
• Virtual Top Tube Length: 23.25” (59 cm)
• Minimum Saddle Height: 22” (56 cm)
• Maximum Saddle Height: 31” (78.5 cm)
• Width: 28.75” (73 cm)
• Wheelbase: 45.75” (116 cm)
• Length: 74” (188 cm)
• Total Weight: 66 lbs. (30 kg)
• Battery Weight: 9 lbs. (4 kg)
• Recommended Minimum Rider Height: 5’6”
• Maximum Load Capacity: 330 lbs. (150 kg)
What's Included:
• Kickstand: Center-Mounted Single Side Kickstand
• Bell: N/A
• Charger: 48 V / 2 A
• Front Rack: Optional Front Rack (Not Included)
• Rear Rack: Optional (Not Included)
• Fenders: Front and Rear Included
• Accessory Mounts:
- Top Tube Mounts
- Head Tube Mounts
- Rear Rack Mounts
