Magnum

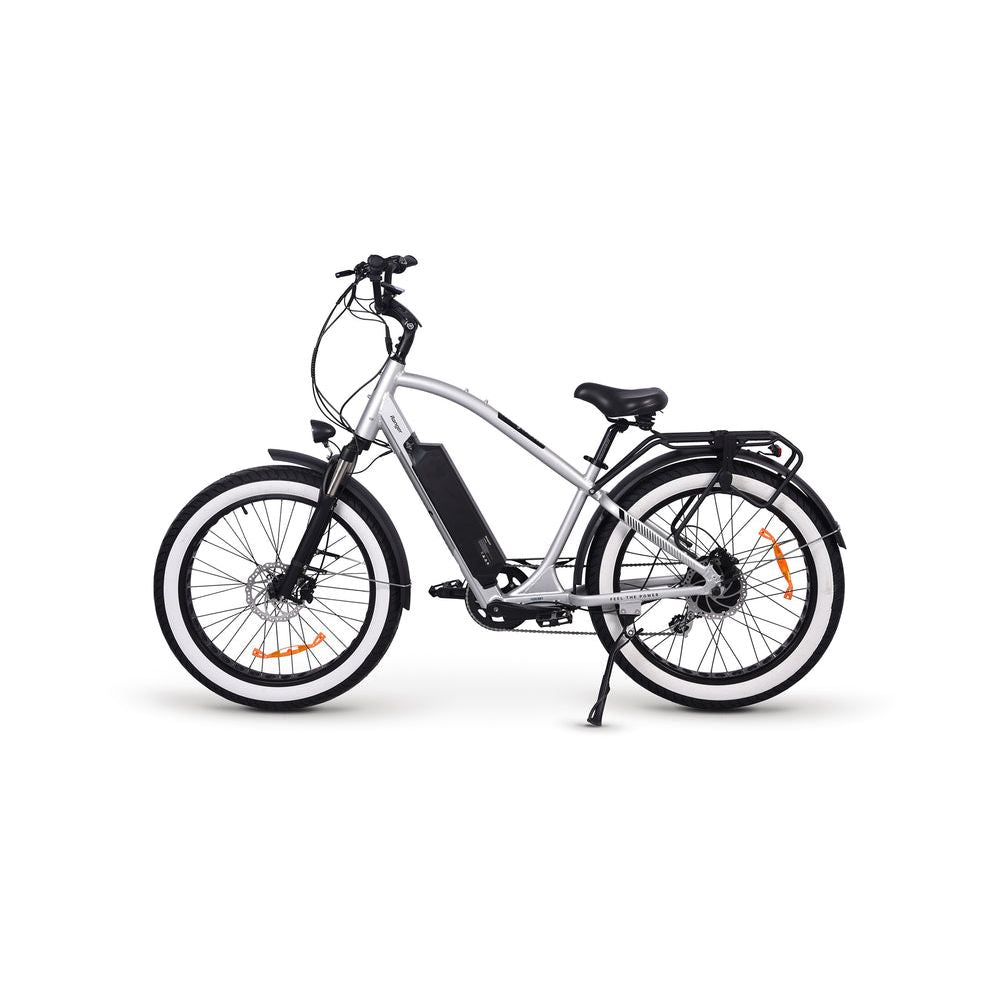

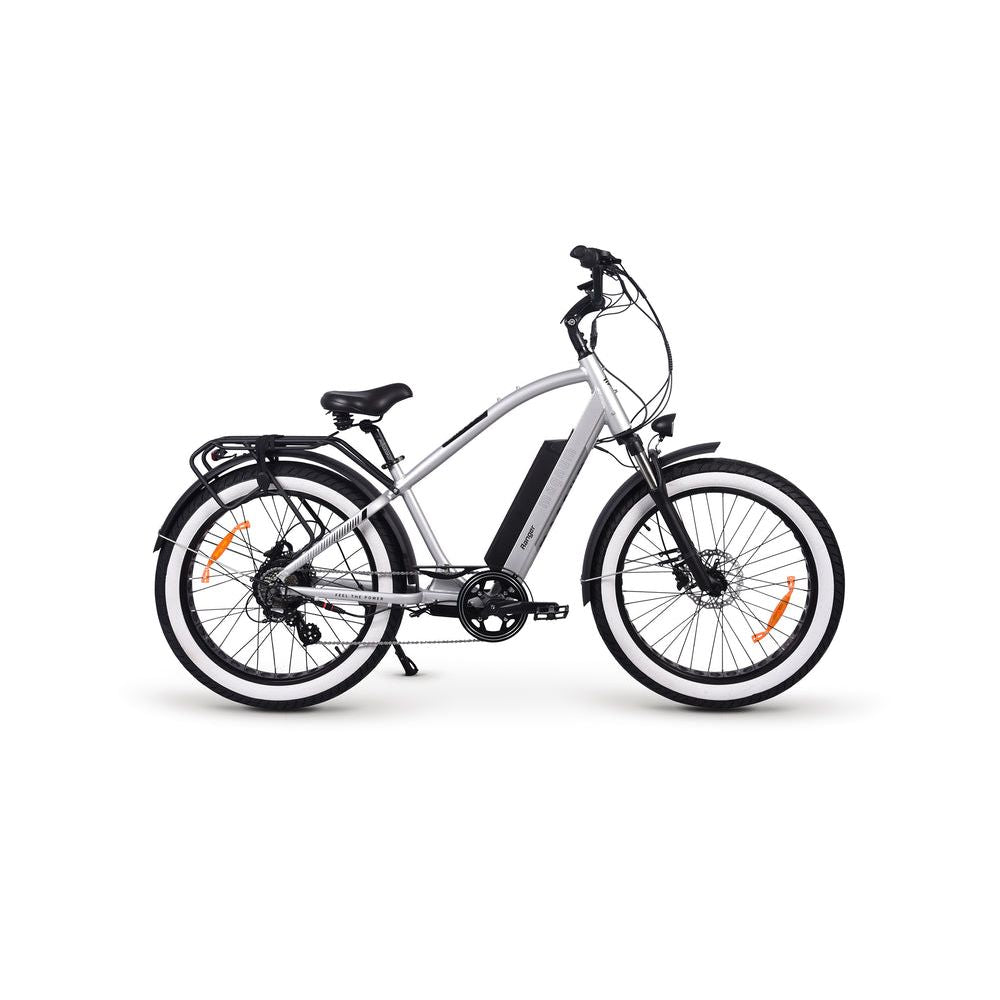

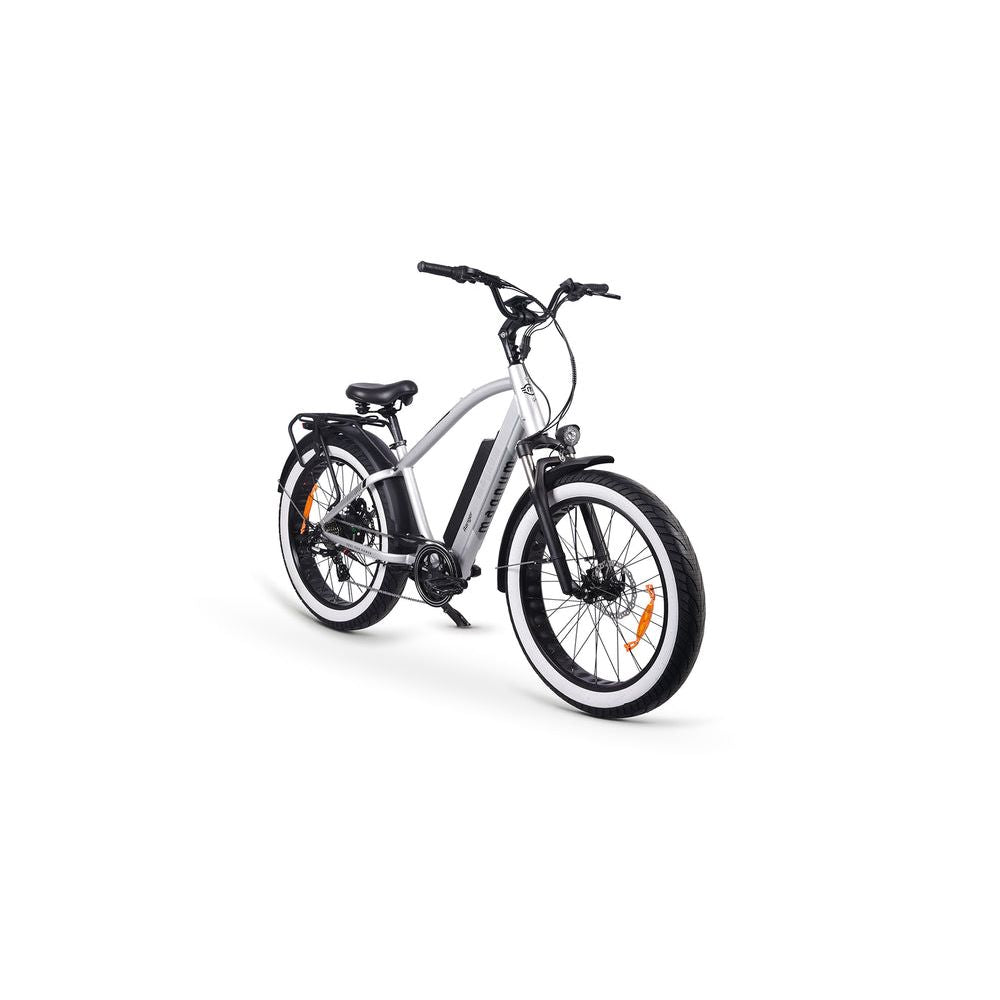

Magnum Fat Tyre Ranger 2.0 E-Bike
Magnum Fat Tyre Ranger 2.0 E-Bike
Couldn't load pickup availability
Electronic Overview:

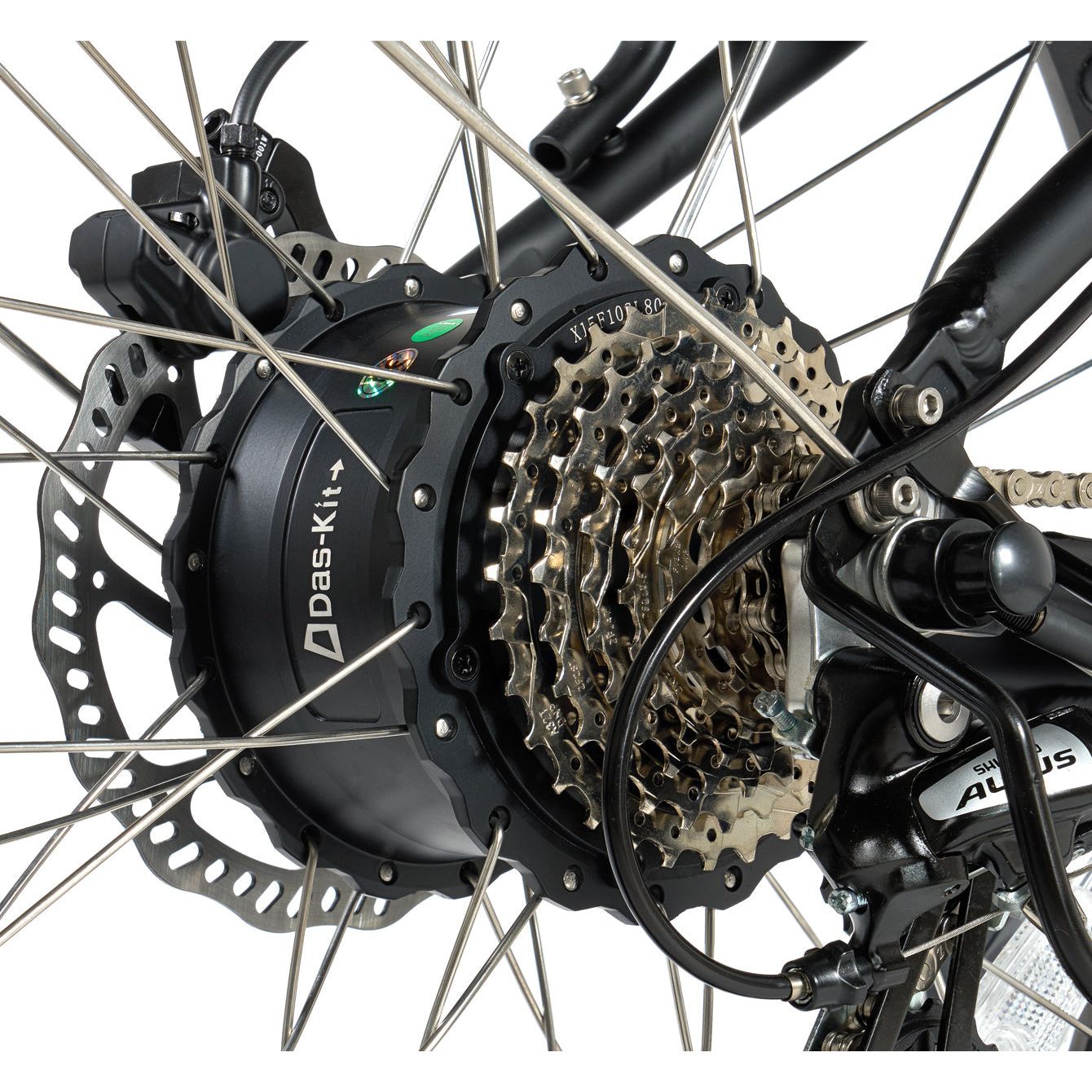

Motor Brand: Bafang
Motor Type: Rear Hub-Drive
Motor Nominal Output: 750 Watts
Motor Peak Output: 1000 Watts
Battery Voltage: 48 Volts
Battery Capacity:
- 20Ah
- 960Wh
Battery Chemistry: Li-NMC
Battery Charge Time (from empty): 10 Hours
Minimum Range: 35 Miles (56 Kilometers)
Maximum Range: 65 Miles (105 Kilometers)

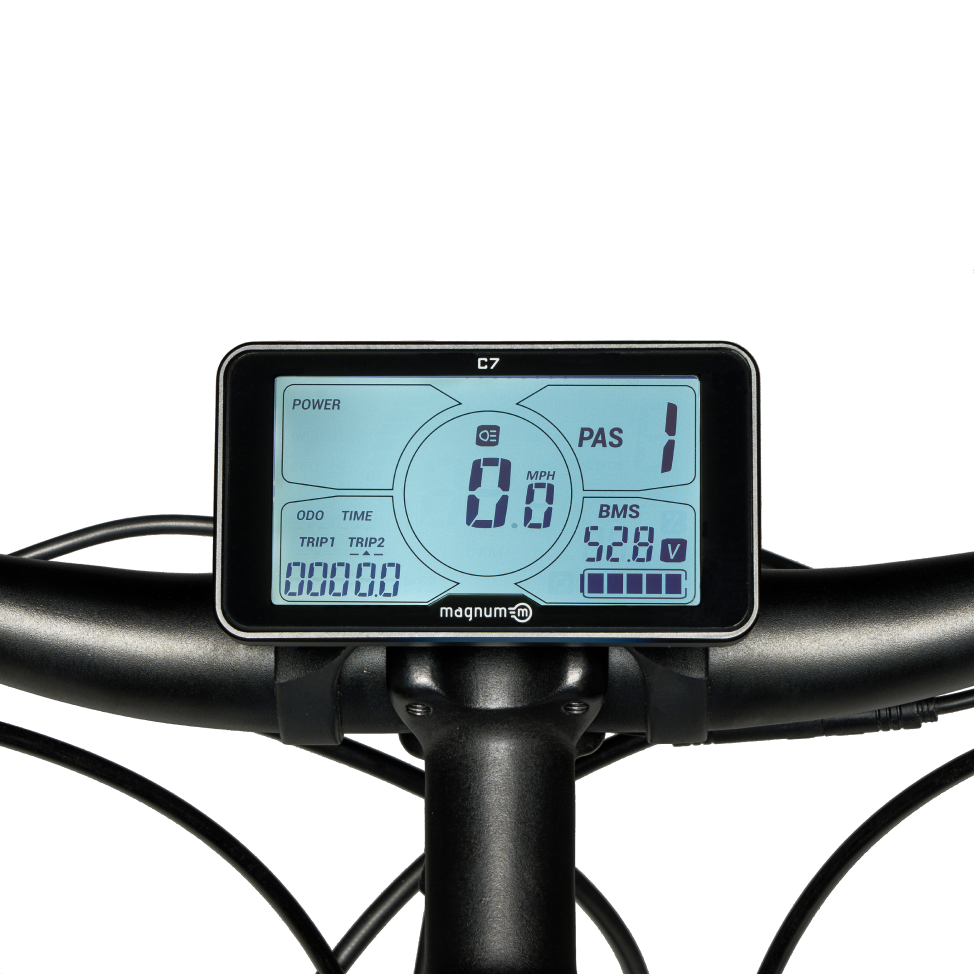

Display Type: Magnum Branded VeloFox, 3.5" Diagonal, Fixed, Monochrome, Backlit LCD
Display Readouts:
- Battery Level, Assist level, Current speed, Power Output, Trip Distance, Odometer, Range, Trip Home
Drive Mode:
- Cadence Sensing Pedal Assist
- Trigger Throttle
- Walk Mode
Top Speed:
- Up to 28 mph with Pedal Assist
- 20 mph with Throttle
Lights: Integrated front and rear light
Mechanical Details:
• Frame Material: Aluminum Alloy
• Fork Details: Coil Spring Suspension with Lockout, 70mm Travel
• Gearing: Shimano 7-Speed (14-28t)
• Shifter: Shimano 7-Speed
• Crank: Alloy, 48t, 170mm
• Pedals: Wellgo
• Stem: Tool-free Adjustable
• Brakes: Hydraulic Disc Brakes
• Grips: Faux Leather
• Saddle: Padded Saddle with Suspension
• Tire Size: 26 x 4.0
• Wheel Size: 26”
• Fenders: Front and Rear Included
• Chain: KMC
Measurements:
• Seat Tube: 20" (51 cm)
• Reach: 10.75” (27 cm)
• Stand Over Height: 34.5” (88 cm)
• Virtual Top Tube Length: 22.5” (57 cm)
• Minimum Saddle Height: 25.25” (64 cm)
• Maximum Saddle Height: 31.25” (79.5 cm)
• Width: 28” (71 cm)
• Wheelbase: 49.25” (125 cm)
• Length: 78” (198 cm)
• Total Weight: 76 lbs (34.5 kg)
• Battery Weight: 9 lbs (4 kg)
• Recommended Minimum Rider Height: 5’5”
• Maximum Load Capacity: 330 lbs (150 kg)
What's Included:
• Kickstand: Center-Mount, Left-Side
• Bell: Not Included
• Charger: 48V / 2A
• Front Rack: Optional Front Rack (Not Included)

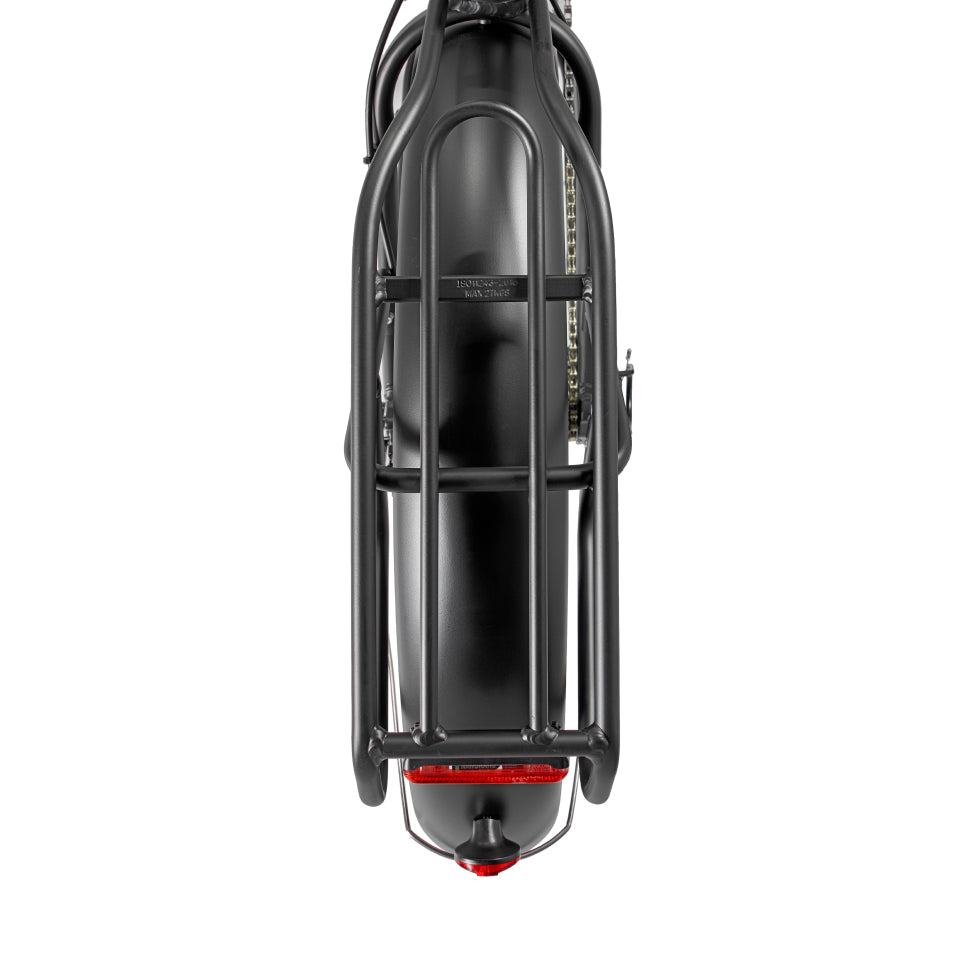

• Rear Rack: Yes (Included)
• Fenders: Front and Rear (Included)
• Accessory Mounts:
- Top Tube Mounts
- Head Tube Mounts
- Rear Rack Mounts
Share
- Description
- Delivery & Returns
Electronic Overview:
Motor Brand: Bafang
Motor Type: Rear Hub-Drive
Motor Nominal Output: 750 Watts
Motor Peak Output: 1000 Watts
Battery Voltage: 48 Volts
Battery Capacity:
- 20Ah
- 960Wh
Battery Chemistry: Li-NMC
Battery Charge Time (from empty): 10 Hours
Minimum Range: 35 Miles (56 Kilometers)
Maximum Range: 65 Miles (105 Kilometers)
Display Type: Magnum Branded VeloFox, 3.5" Diagonal, Fixed, Monochrome, Backlit LCD
Display Readouts:
- Battery Level, Assist level, Current speed, Power Output, Trip Distance, Odometer, Range, Trip Home
Drive Mode:
- Cadence Sensing Pedal Assist
- Trigger Throttle
- Walk Mode
Top Speed:
- Up to 28 mph with Pedal Assist
- 20 mph with Throttle
Lights: Integrated front and rear light
Mechanical Details:
• Frame Material: Aluminum Alloy
• Fork Details: Coil Spring Suspension with Lockout, 70mm Travel
• Gearing: Shimano 7-Speed (14-28t)
• Shifter: Shimano 7-Speed
• Crank: Alloy, 48t, 170mm
• Pedals: Wellgo
• Stem: Tool-free Adjustable
• Brakes: Hydraulic Disc Brakes
• Grips: Faux Leather
• Saddle: Padded Saddle with Suspension
• Tire Size: 26 x 4.0
• Wheel Size: 26”
• Fenders: Front and Rear Included
• Chain: KMC
Measurements:
• Seat Tube: 20" (51 cm)
• Reach: 10.75” (27 cm)
• Stand Over Height: 34.5” (88 cm)
• Virtual Top Tube Length: 22.5” (57 cm)
• Minimum Saddle Height: 25.25” (64 cm)
• Maximum Saddle Height: 31.25” (79.5 cm)
• Width: 28” (71 cm)
• Wheelbase: 49.25” (125 cm)
• Length: 78” (198 cm)
• Total Weight: 76 lbs (34.5 kg)
• Battery Weight: 9 lbs (4 kg)
• Recommended Minimum Rider Height: 5’5”
• Maximum Load Capacity: 330 lbs (150 kg)
What's Included:
• Kickstand: Center-Mount, Left-Side
• Bell: Not Included
• Charger: 48V / 2A
• Front Rack: Optional Front Rack (Not Included)
• Rear Rack: Yes (Included)
• Fenders: Front and Rear (Included)
• Accessory Mounts:
- Top Tube Mounts
- Head Tube Mounts
- Rear Rack Mounts
Order Confirmation: As soon as you place your order, we will pre-authorise your card however your card will not be charged. We will then contact our supplier to confirm that the product you have purchased is available for immediate shipment. Once confirmed we will process the payment and your order will be dispatched straight away. If there is any delay such as an item which is on backorder, we will void the pre-authorisation and contact you to let you know.
Order Delivery: Once your order has been placed, assuming it is in stock and available for dispatch, we will charge your card and your order will be dispatched within 5 working days. We’ll send you tracking details by email within 24 hours of your order being dispatched. If you have not received tracking details within 6 working days, please reach out to us via email at contact@e-sparkz.co.uk so that we can help.
Damages: We ask that you thoroughly inspect all items at the point of delivery. We advise you not to accept delivery of any damaged items. If you discover that an item has been damaged, please send clear photos of the damaged items to contact@e-sparkz.co.uk so that we can open an insurance claim on your behalf.
Cancellations & Refunds: Any orders cancelled after 48 hours of placing the order may be subject to additional fees. If your order has been dispatched, you (the buyer) will be responsible for any costs associated with returning the item. Any refunds can only be issued to the same payment method which was used to place the order.
